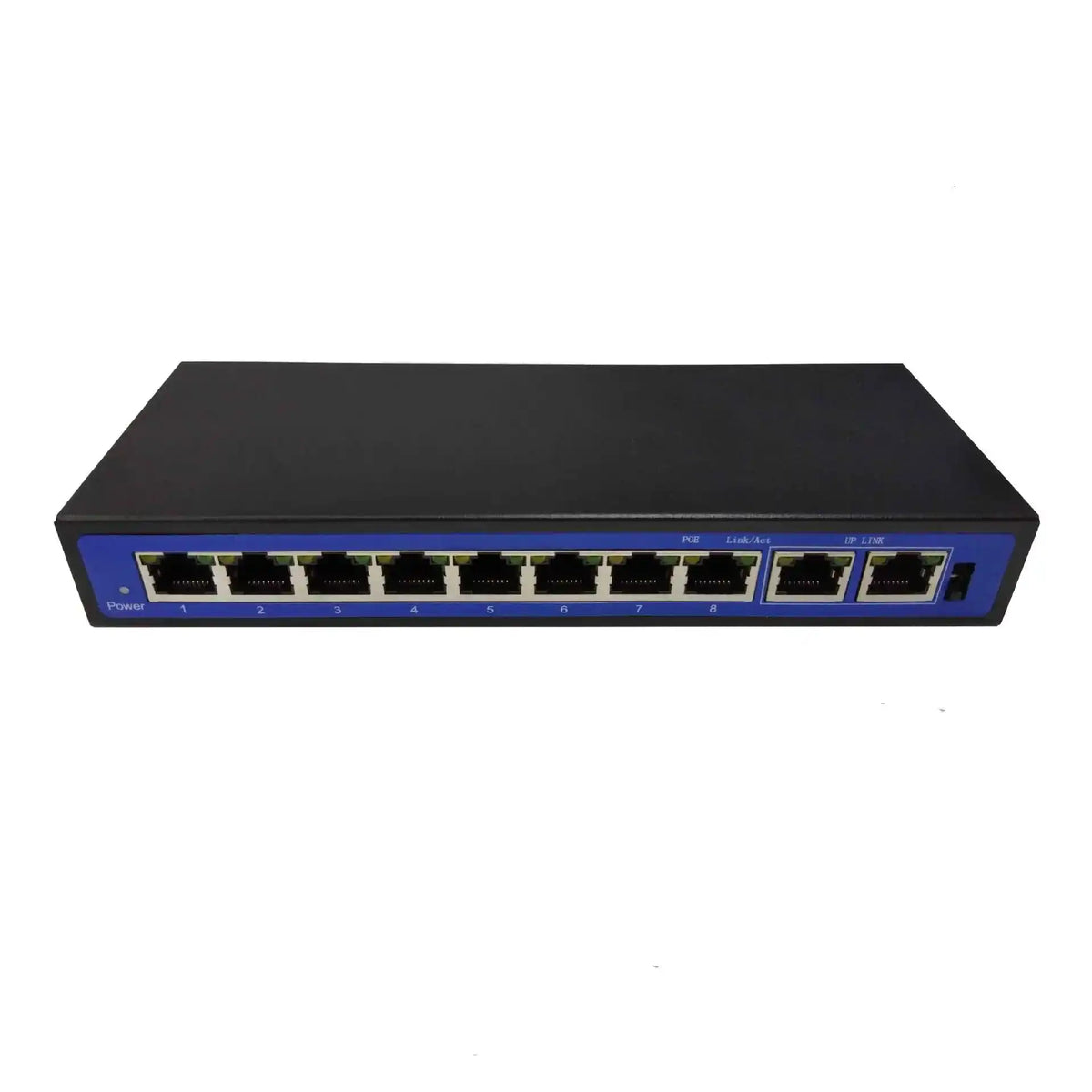

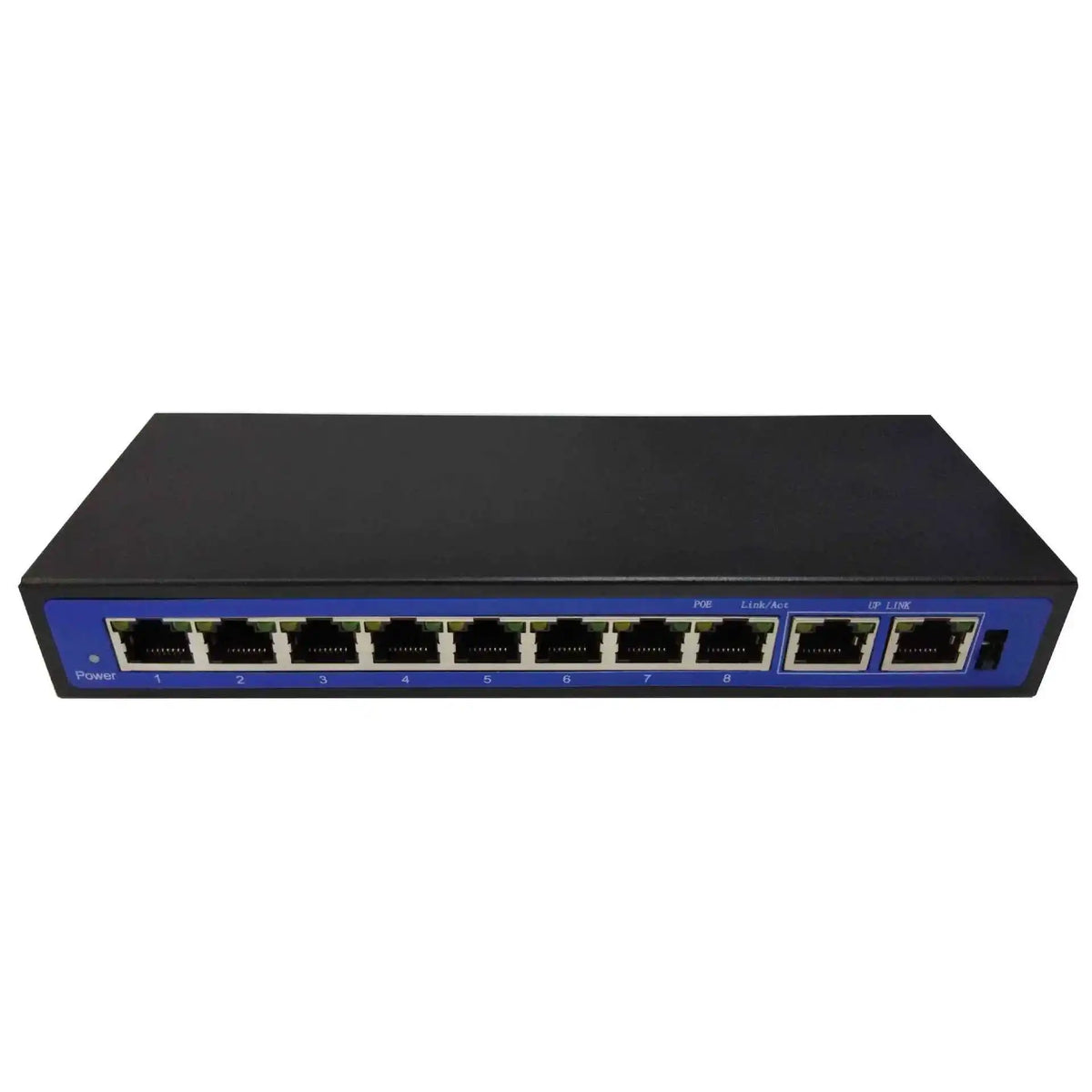

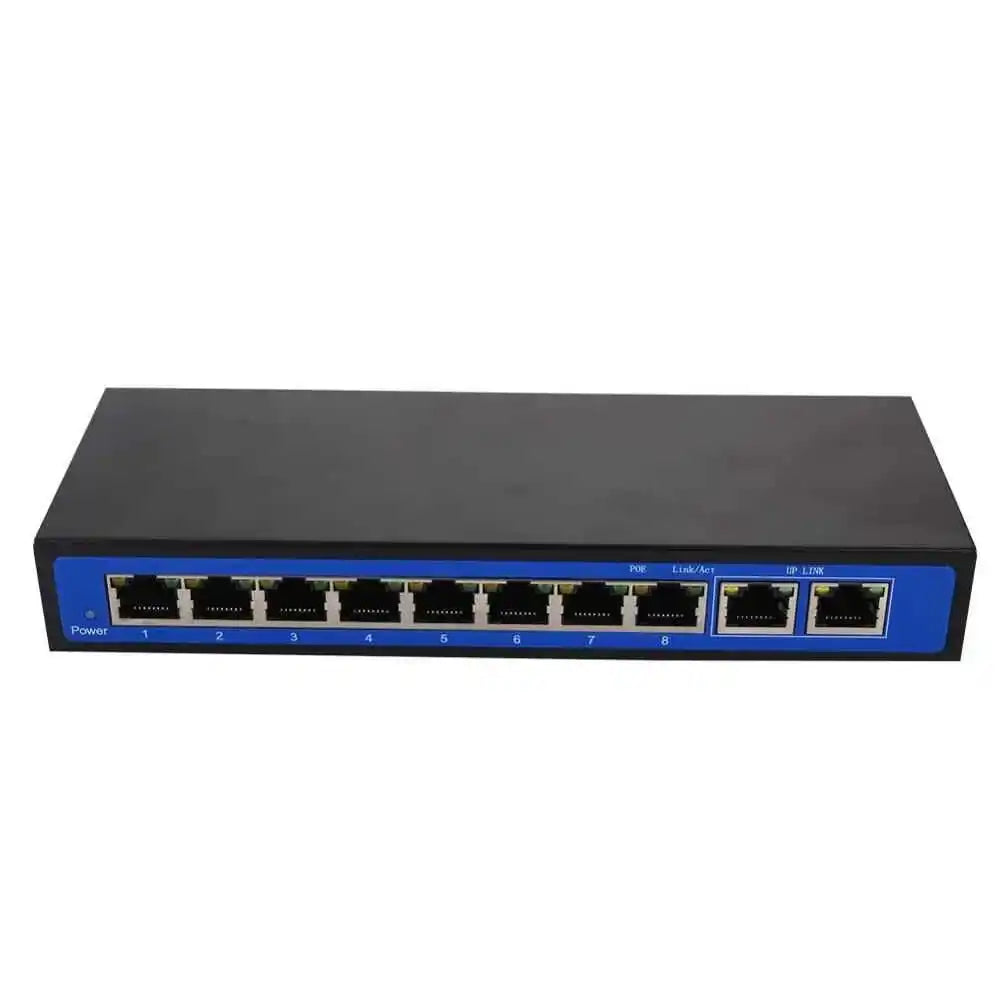

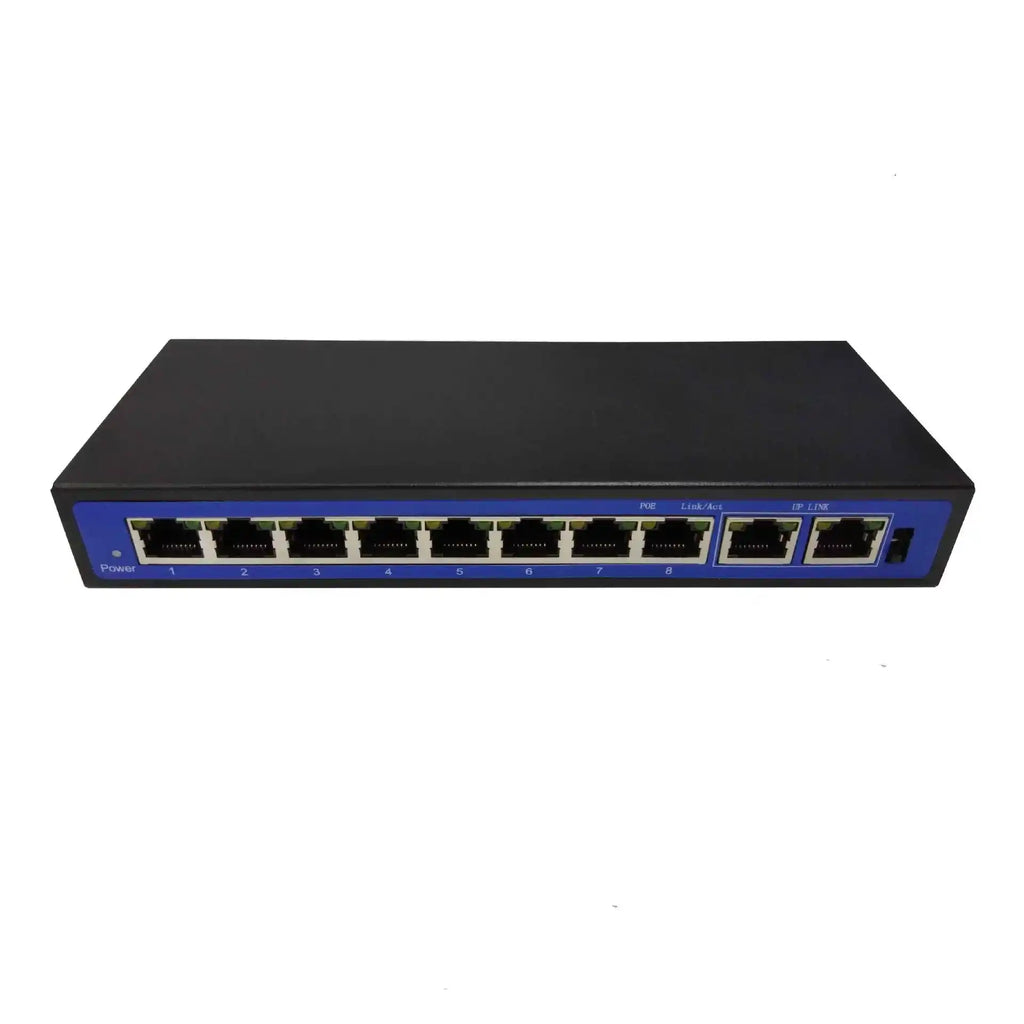

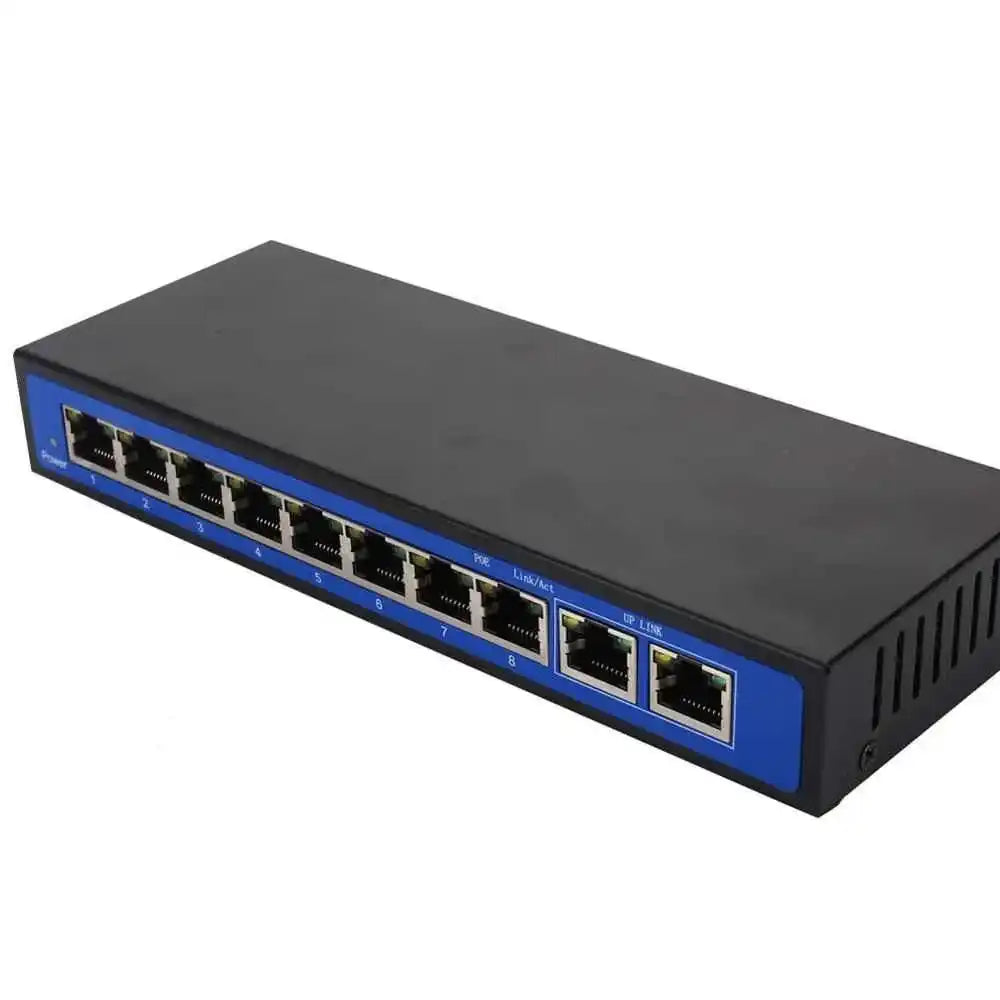

10 Port POE Network Switch - 8+2 100Mbps with 48V Power Supply

Power Your Network & Devices in One Shot

Stop running separate power cables to every access point and IP camera. This 10-port POE switch delivers both data and power over a single Ethernet cable, making it the clean, efficient backbone for home networks, small offices, CCTV setups, and wireless AP deployments. With 8 POE-enabled ports plus 2 uplink ports, it handles the lot.

Key Features

• 8 POE Ports + 2 Uplink Ports — power and connect up to 8 POE devices simultaneously via standard Cat5e or above cabling
• IEEE 802.3af/at Compliant — 15.4W or 30W per port, compatible with IP cameras, wireless APs, VoIP phones, and more
• Up to 200m POE Range — extend power and data up to 200 metres for hard-to-reach installations
• 2.0Gbps Backplane Bandwidth — non-blocking architecture for smooth, uninterrupted network traffic
• Store-and-Forward Switching — error-free packet forwarding for reliable network performance
• Auto MAC Learning & Aging — intelligent address management with power supply priority mechanism
• Full & Half Duplex Flow Control — IEEE 802.3x full-duplex and backpressure half-duplex support
• 48V External Power Adapter Included — AC 220V input, 48V/3A output; total power consumption ≤150W

Perfect For

• Wireless access point (AP) deployments
• IP security camera (CCTV) installations
• Small office and home network setups
• VoIP phone systems
• Any POE-powered device network

Technical Specifications

• Model: ZWD-8+2BZDW
• Ports: 8× POE (IEEE 802.3af/at) + 2× Uplink Ethernet
• POE Output: 15.4W / 30W per port
• POE Range: ≤200m
• Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3af/at
• Network Medium: Cat5 or above UTP
• Signal Distance: ≤120m
• Backplane Bandwidth: 2.0Gbps
• Forwarding Rate: 14,880 PPS (10Base-T) / 148,800 PPS (100Base-TX)
• MAC Address Table: 2K

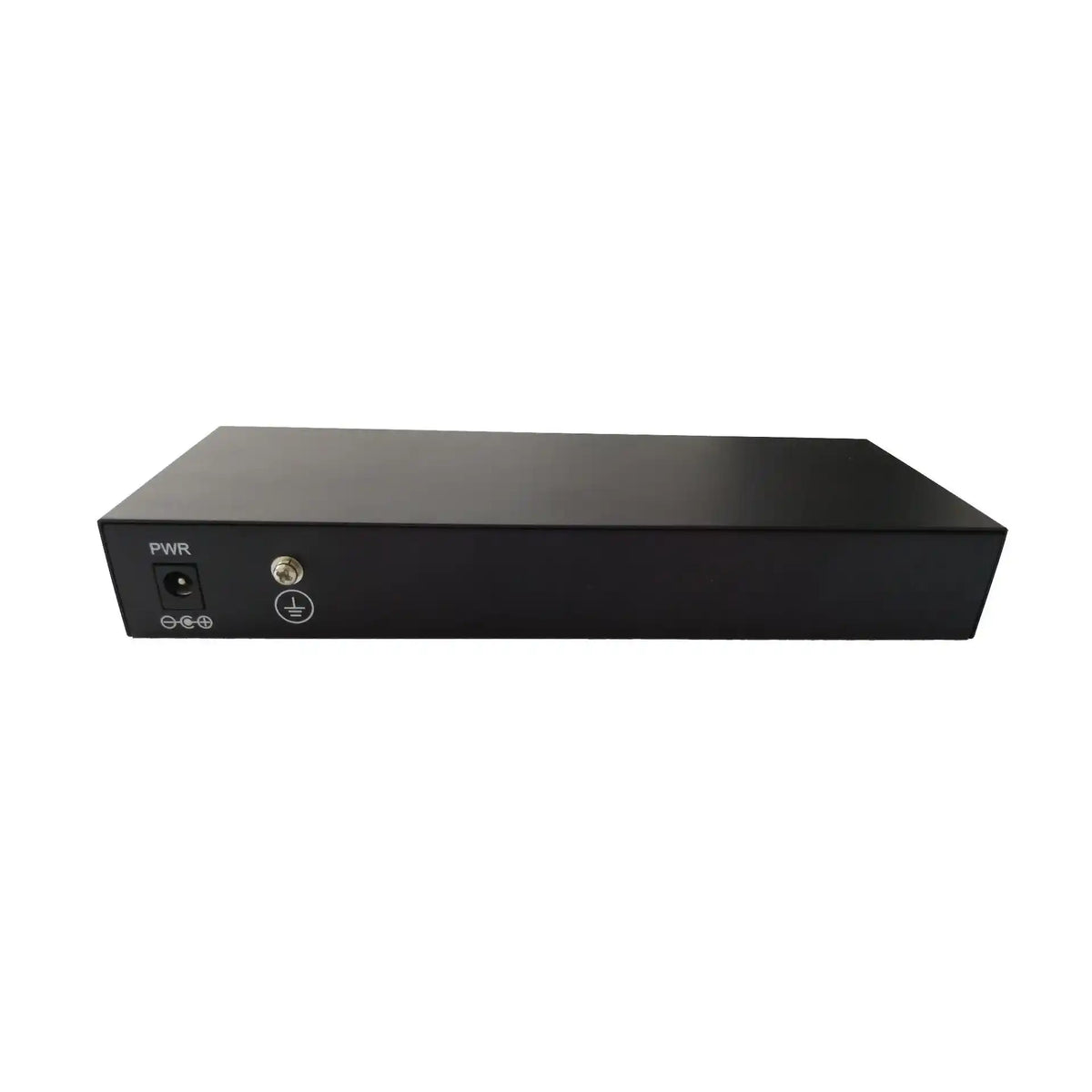

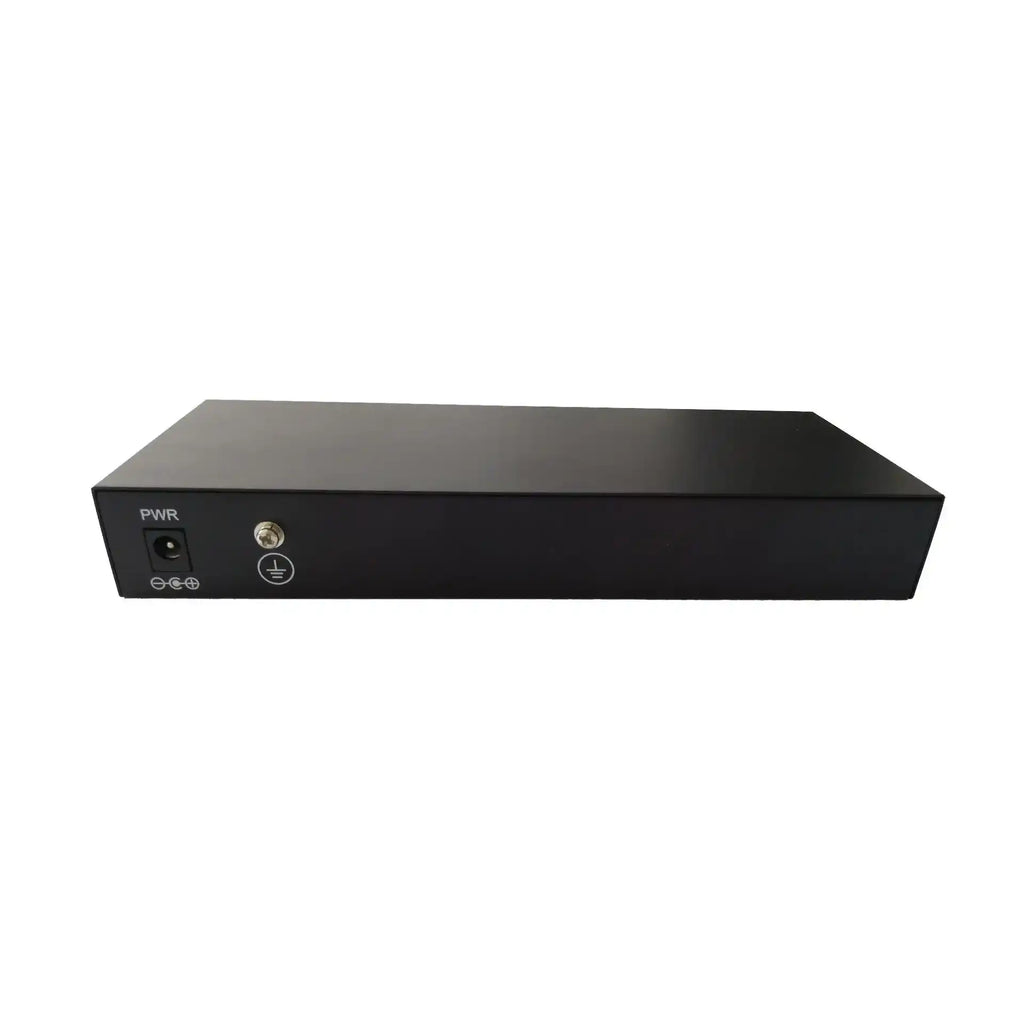

• Power Supply: External adapter — AC 220V in, DC 48V/3A out
• Max Power Consumption: ≤150W
• Operating Temp: 0℃ – 40℃
• Operating Humidity: 10% – 90% RH (non-condensing)

This product is subject to the True Technology Warranty Policy.
